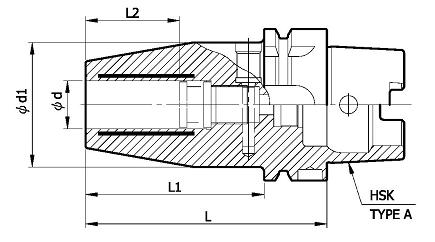

订购号

FIG

ød

ød1

ød2

L

L1

刀具夹持
深度L2

L3

筒夹

HSK50A-HM06-080

1

6

26

40

80

24.5

26~36

54

-

HSK50A-HM08-080

8

25

40

80

25.5

26~36

54

-

HSK50A-HM10-080

10

30

40

80

35.5

30~40

54

-

HSK50A-HM12-090

12

32

40

90

40

35~45

64

HM12

HSK50A-HM14-090

14

34

40

90

40

35~45

64

-

HSK50A-HM16-090

2

16

38

40

90

40

38~48

64

-

HSK50A-HM18-090

18

37

42

90

40

38~48

64

-

HSK50A-HM20-090

20

37

42

90

11

40~50

64

HM20

HSK63A-HM06-080

1

6

26

50

80

24.5

26~36

54

-

HSK63A-HM08-080

8

28

50

80

25.5

26~36

54

-

HSK63A-HM10-090

10

60

50

90

35.5

30~40

64

-

HSK63A-HM12-090

12

32

50

90

40

35~45

64

HM12

HSK63A-HM14-090

14

34

50

90

40

35~45

64

-

HSK63A-HM16-100

16

38

50

100

40

38~48

74

-

HSK63A-HM18-100

18

40

50

100

40

38~48

74

-

HSK63A-HM20-100

2

20

37

53

100

42

40~50

74

HM20

HSK63A-HM25-120

25

43

57

120

37

46~56

94

-

HSK63A-HM32-120

32

50.5

62.5

120

31

50~60

94

HM32

HSK100A-HM10-100

1

10

30

50

100

35.5

30~40

71

-

HSK100A-HM12-100

12

32

50

100

40

35~45

71

HM12

HSK100A-HM14-100

14

34

50

100

40

35~45

71

-

HSK100A-HM16-100

16

38

50

100

40

38~48

71

-

HSK100A-HM18-100

18

40

50

100

40

38~48

71

-

HSK100A-HM20-105

2

20

37

53

105

42

40~45

76

HM20

HSK100A-HM25-120

25

43

57

120

37

46~56

91

-

HSK100A-HM32-120

32

50.5

62.5

120

31

50~50

91

HM32
